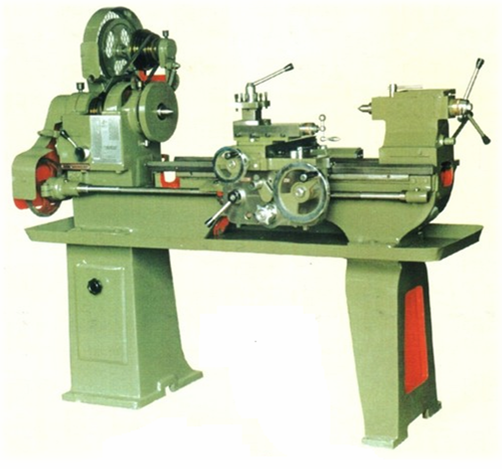

STANDARD MODEL

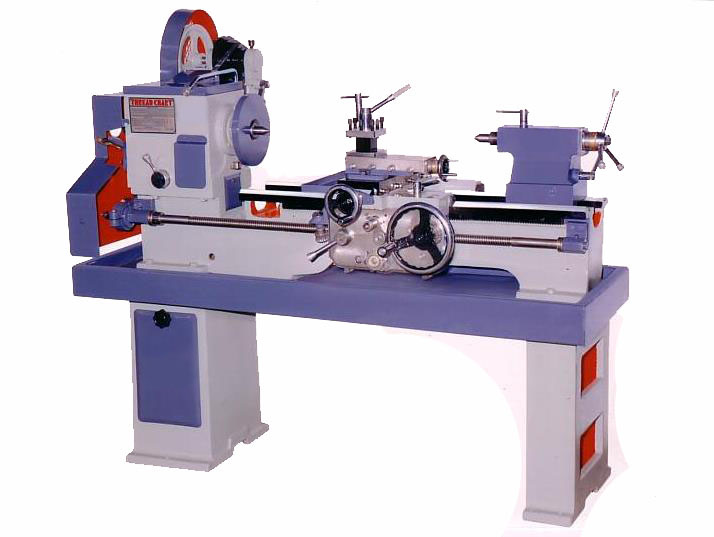

 SUPER MODEL WITHOUT NORTON GEAR BOX                                                SUPER MODEL WITH NOROTON GEAR BOX

(Click on the magnifying glass on bottom right of picture to zoom)

“ROLEX JUNIOR TURNER” SIDE COUNTER VEE - BELT DRIVE SLIDING, SURFACING & SCREW CUTTING PRECISION LATHE MACHINE: “Rolex Turner Junior” side counter Lathe Machine has been designed to meet the demand for small and precision jobs. Outstanding craftsmanship and quality control are the most vital factors.

SALIENT FEATURES: The Bed is close grain graded cast iron seasoned to avoid stresses. Bed Hardness will be Minimum 320 BHN and above. Spindle is made of Alloy Steel which runs TWO TAPER ROLLER BEARINGS. Spindle is of solid block, accurately aligned on Vee’s and flat surface of bed ways for precision machining of jobs. Opening screws are fitted with micrometric dials for denoting precision machine of jobs. Tail stock is of rigid construction which can be easily offset for taper turning. Gap Bed facility. Accuracy is checked as per BIS Specification.

Sizes: 4½ Feet to 6 Feet

Centre Height: 165 mm

Spindle Bore: 40 mm

Standard Accessories: Suitable 3 Phase 1440RPM Electric Motor, Motorpulley, Railings for Motor, Vee – Belts, Reversible Switch, Dog Chuck 8”, Belt and Gear Guard, Set of Gears, Sleave, Two Dead Centres, Chip Tray, Square Tool Post, Thread Dial Indicator, Flame Hardened Bedways.

Optional Accessories: Self Centering True Chuck with Back Plate, Steady Rest, Follow Rest, Face Plate, Electric Coolant Pump with Tank & Fittings, Machine Lamp, Rear Tool Post, Taper Turning Attachment, Norton Type Gear Box.
